LED Post Top Lighting

LD-101

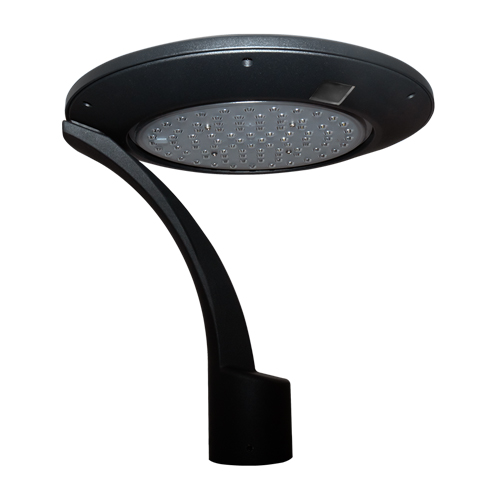

Single Arm LED Light Fixture

18" W x 18 3/4" H top mount single arm LED Aero fixture.

This fixture mounts to a 3" O/D pole top tenon. Fits 3" O/D poles and all PSM poles. *TSB15 required if using on a 4" O/D direct burial round pole. Typical area lighting applications include parks, residential and commercial walkways and street lighting applications. Die cast and sand cast aluminum housing. Black powder coated finish. Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics.

HOW TO ORDER:

MODEL #	OPTICS	WATTAGE	VOLTAGE	FINISH	Optional Photocell
LD-101	I / II / III / IV / V	37 / 65 / 100 or 140	U / H	Black	PC1 / PC2

Order Information Example: LD-101-V-100-U-BLK

Optional photocell is available upon request.
Model #: PC1 120-277 Volt Universal Twist Lock Photocell
Model #: PC2 - 480 Volt Universal Twist Lock Photocell for 480 volt use only.

Fixture Details and Options
OPTICS: Type I (standard), II, III, IV or V distribution
WATTAGE: 37w, 65w, 100w, or 140w
VOLTAGE: U = 120-277V or H = 347-480V
KELVIN: 4000K (3000K and 5000K available upon request)
LENS: Clear
FINISH: BLK = Black (custom colors available upon request)
View our Area and Street Lighting Supplement for additional product information.

LD-102

Download Product
Photometric Data

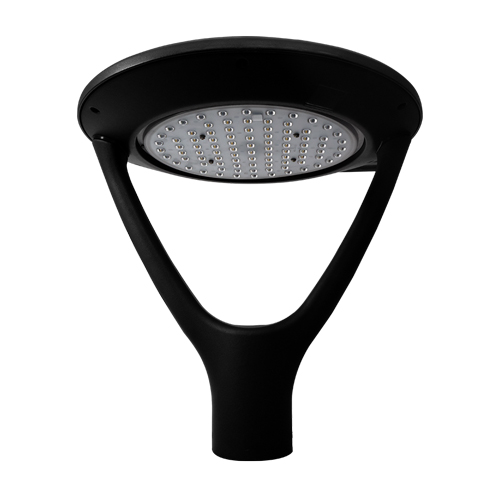

Dual Arm LED Light Fixture

18" W x 18 3/4" H top mount dual arm LED Aero fixture.

This fixture mounts to a 3" O/D pole top tenon. Fits 3" O/D poles and all PSM poles. *TSB15 required if using on a 4" O/D direct burial round pole. Typical area lighting applications include parks, residential and commercial walkways and street lighting applications. Die cast and sand cast aluminum housing. Black powder coated finish. Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics.

HOW TO ORDER:

MODEL #	OPTICS	WATTAGE	VOLTAGE	FINISH	Optional Photocell
LD-102	I / II / III / IV / V	37 / 65 / 100 or 140	U / H	Black	PC1 / PC2

Order Information Example: LD-102-V-100-U-BLK

Optional photocell is available upon request.
Model #: PC1 120-277 Volt Universal Twist Lock Photocell
Model #: PC2 - 480 Volt Universal Twist Lock Photocell for 480 volt use only.

Fixture Details and Options
OPTICS: Type I (standard), II, III, IV or V distribution
WATTAGE: 37w, 65w, 100w, or 140w
VOLTAGE: U = 120-277V or H = 347-480V
KELVIN: 4000K (3000K and 5000K available upon request)
LENS: Clear
FINISH: BLK = Black (custom colors available upon request)
View our Area and Street Lighting Supplement for additional product information.

LD-201

Download Product
Photometric Data

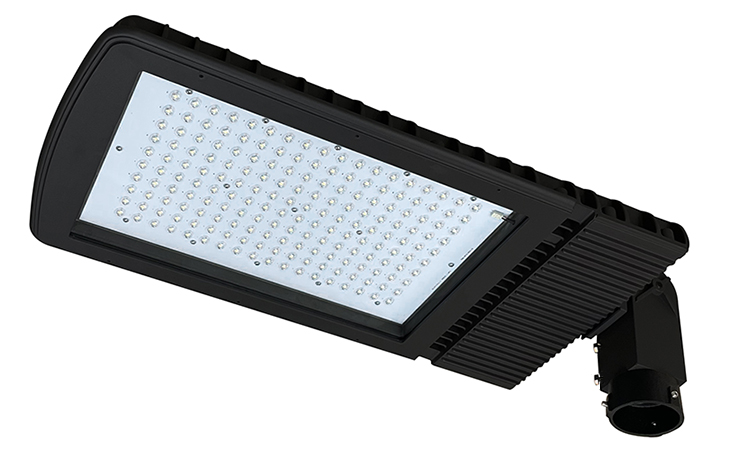

LED Large Area Light Fixture

16 3/8" W x 33 1/8" L x 4 1/4" H LED Bentley fixture.

This fixture mounts to a 3" O/D pole top tenon. Our large area LED light fixture is designed to replace HID lighting systems up to 1000w MH or HPS. Fits 3" O/D poles and all PSM poles. *TSB15 required if using on a 4" O/D direct burial round pole. Typical area lighting applications include parking areas, flood and security lighting applications. Die cast and sand cast aluminum housing. Architectural bronze coated finish. .

HOW TO ORDER:

MODEL #	OPTICS	WATTAGE	VOLTAGE	FINISH	Optional Photocell
LD-201	I / II / III / IV / V	279	U / H	Black	PC2

Order Information Example: LD-102-V-100-U-BLK

Optional photocell is available upon request.
Model #: PC2 - 480 Volt Universal Twist Lock Photocell for 480 volt use only.

Fixture Details and Options
OPTICS: Type I (standard), II, III, IV or V distribution
WATTAGE: 279w
VOLTAGE: U = 120-277V or H = 347-480V
KELVIN: 4000K (3000K and 5000K available upon request)
LENS: Clear
FINISH: BLK = Black (custom colors available upon request)
View our Area and Street Lighting Supplement for additional product information.
